Specifications
Provisions
Curtain wall
Low-E double glazed curtain wall system
Ceiling system
Suspended metal ceiling system
Lighting system
T5 high-performance fluorescent tubes
Floor height
Clear headroom of 2.75m to 3.2m
Raised floor system
150mm
Loading
3kPa for live load and 1kPa for partition load
Air-conditioning system
Fancoil central air-conditioning system
Electricity
300 Amp 3-phase normal power supply per floor
Knock out panel
Available on each floor
Window blind
Built-in 3% sunscreen roller blind
Building Facilities
Lift system
6 passenger lifts per zone (each zone with 3 lifts reaching car parking floors)
2 service lifts (1800kg/24 Persons; 2500kg/33 Persons)
Female & male toilets
Toilets with lockers (for females)
Disabled toilet
Available on every office floor
Executive toilets
2 executive toilets on every office floor with shower facilities
Pantry
Equipped with water and power supply
Car park
184 vehicle spaces
19 motorcycle spaces
EV charger
16 electric vehicle chargers
Access System
Key card entry system
Recognition
LEED – Gold

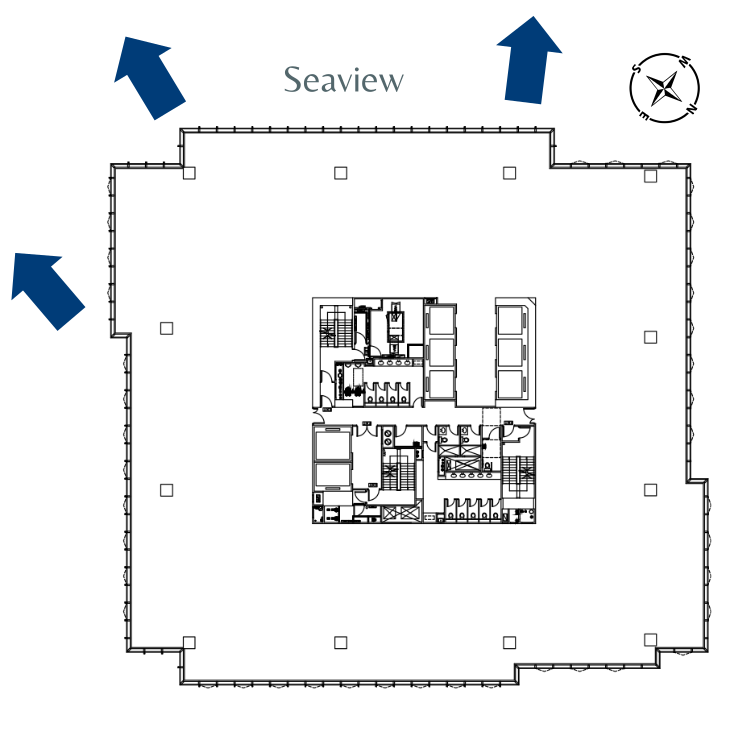

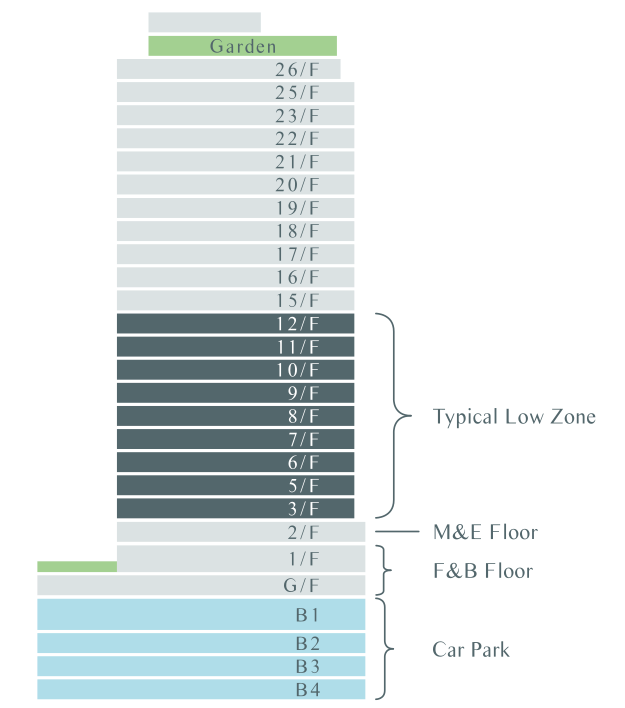

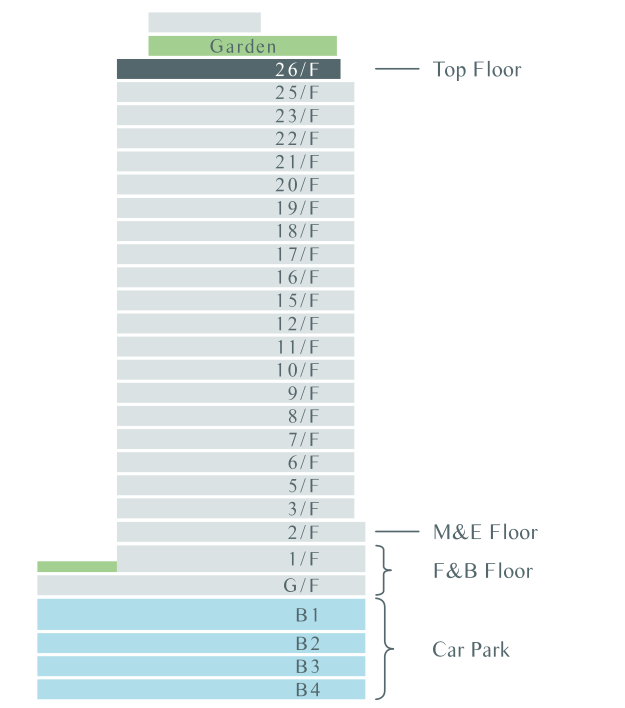

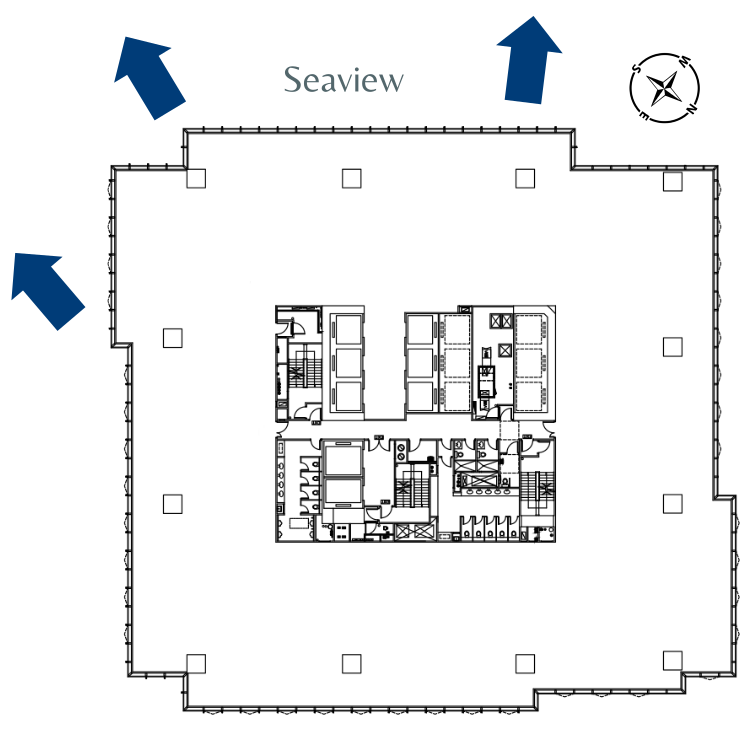

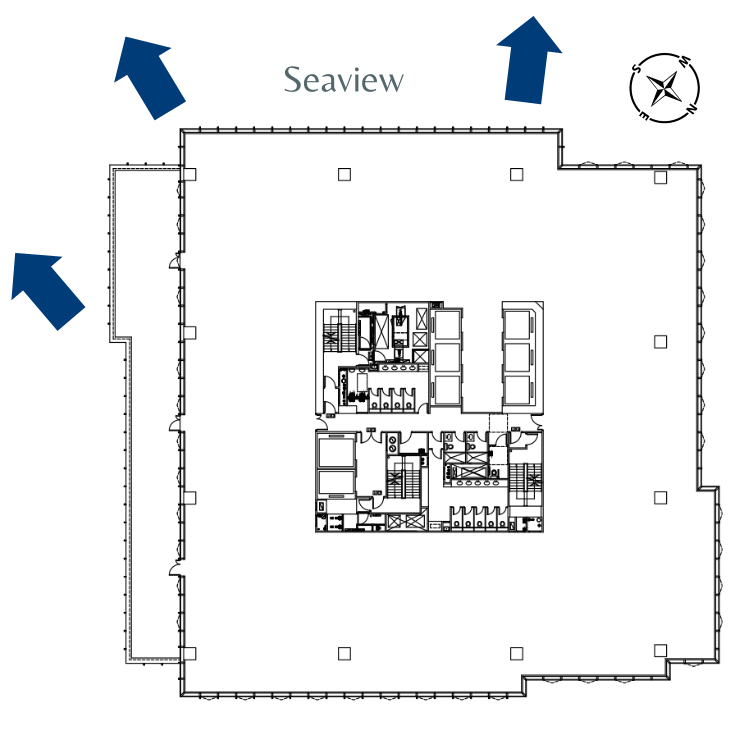

Typical Floor Plan

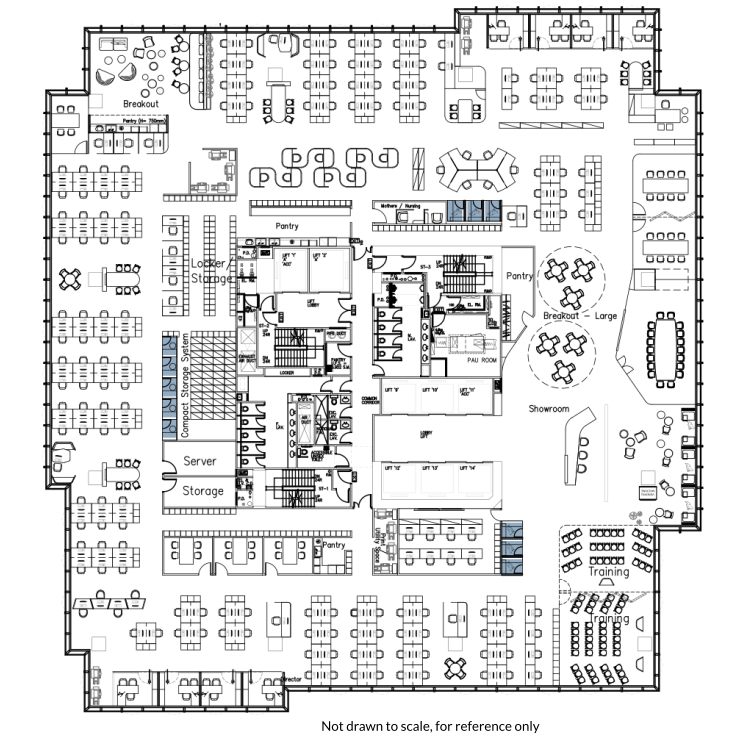

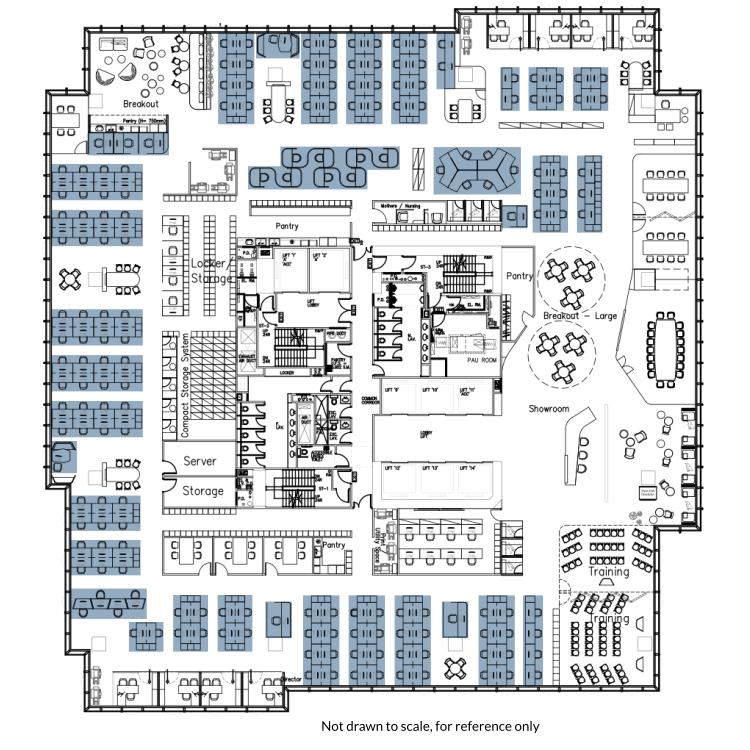

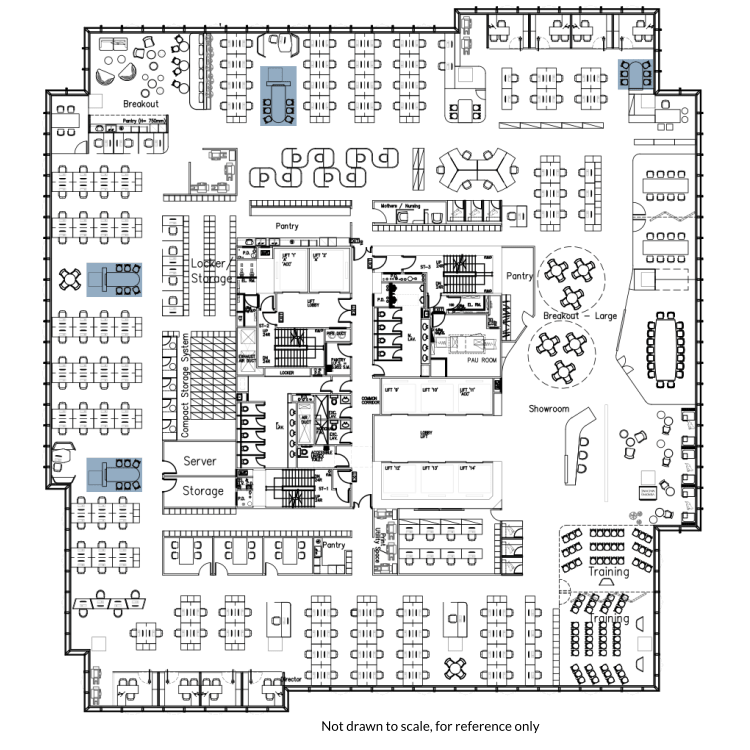

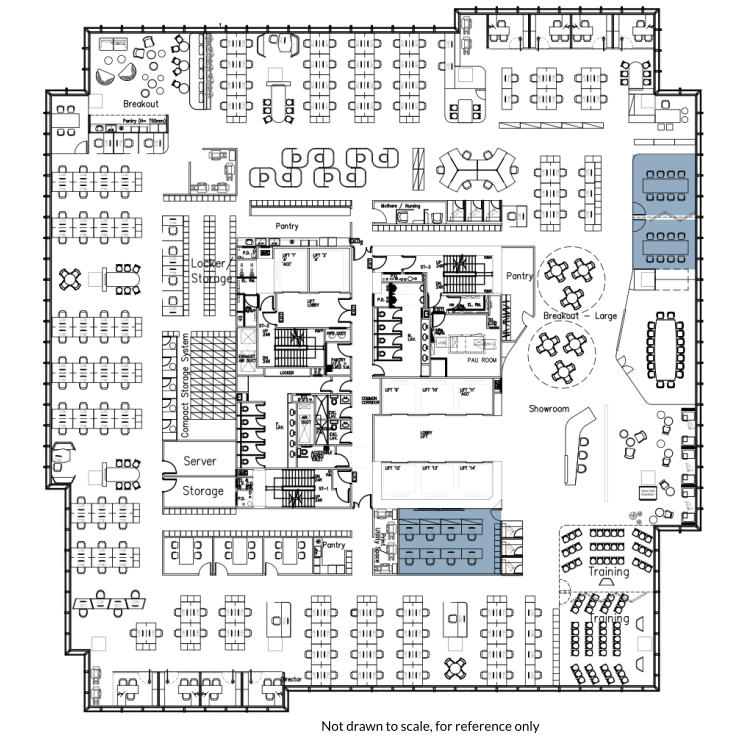

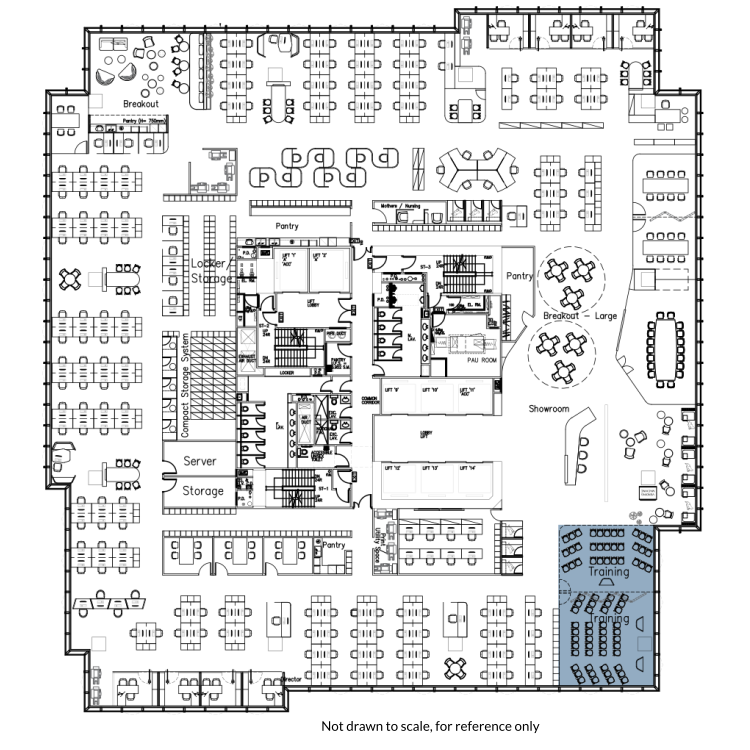

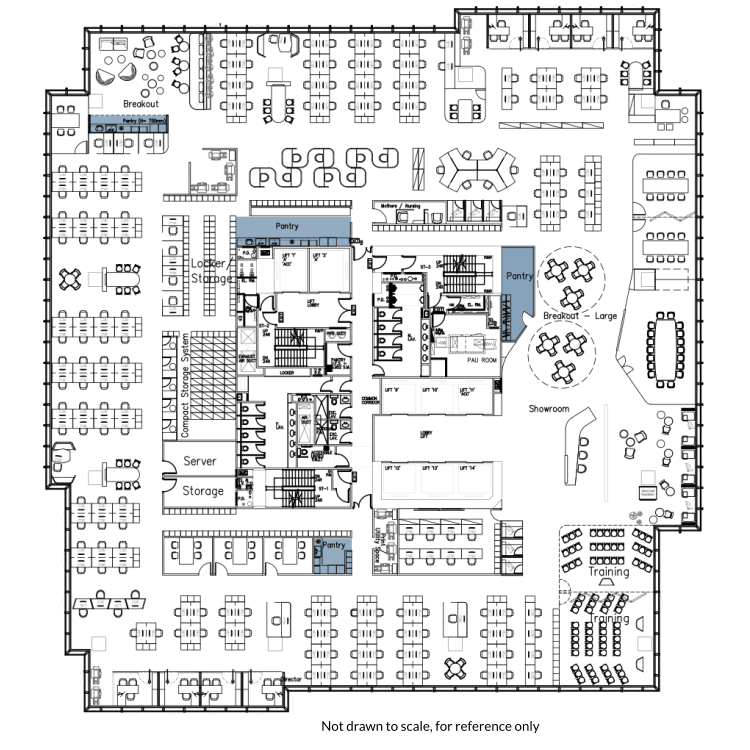

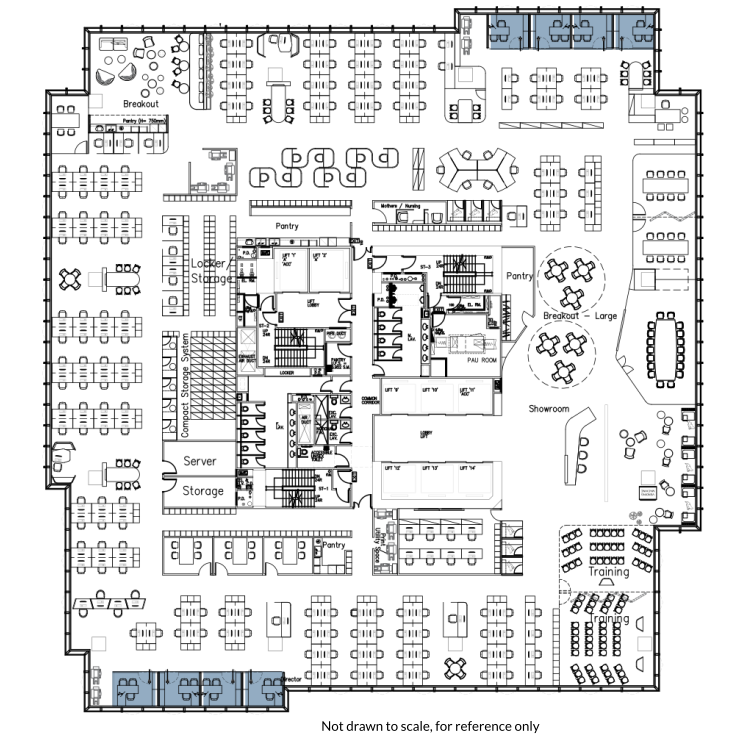

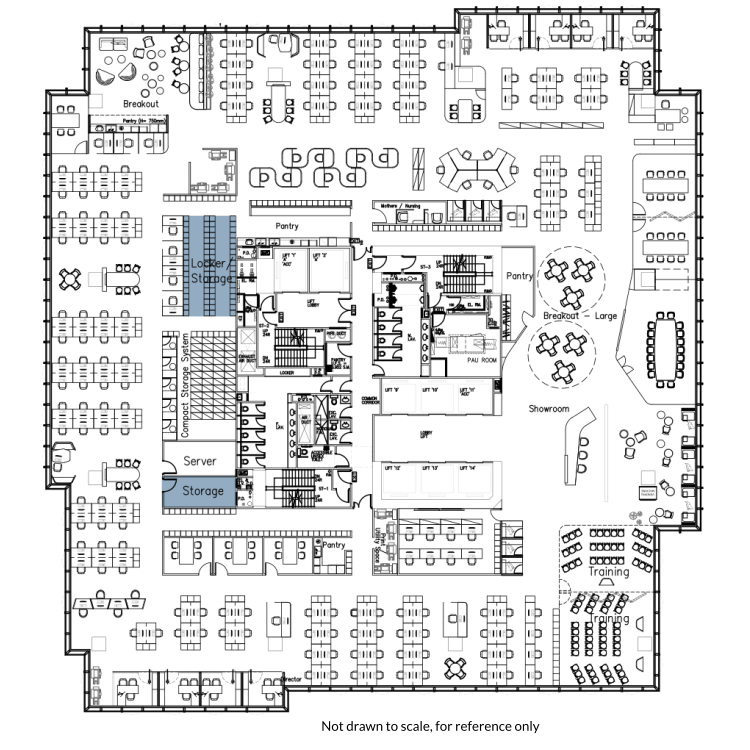

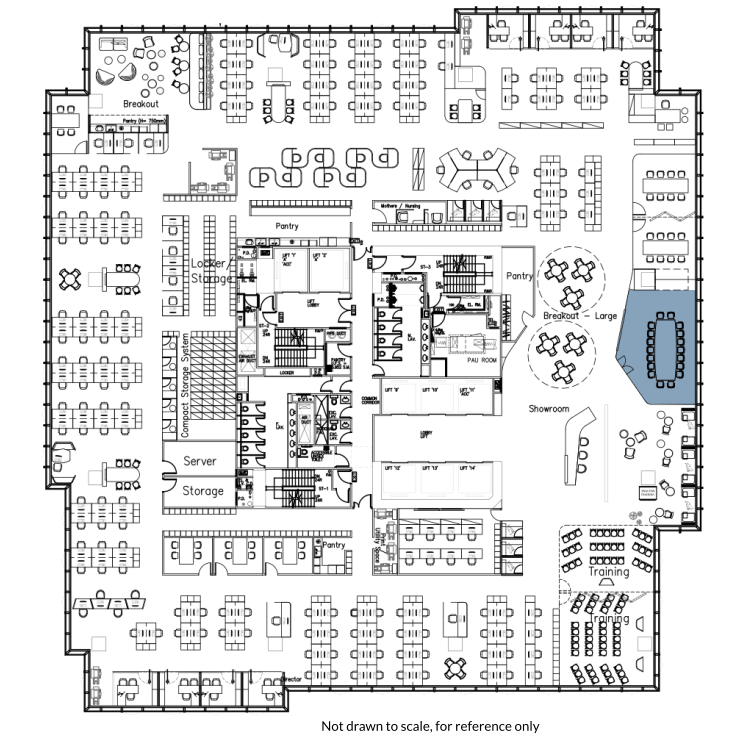

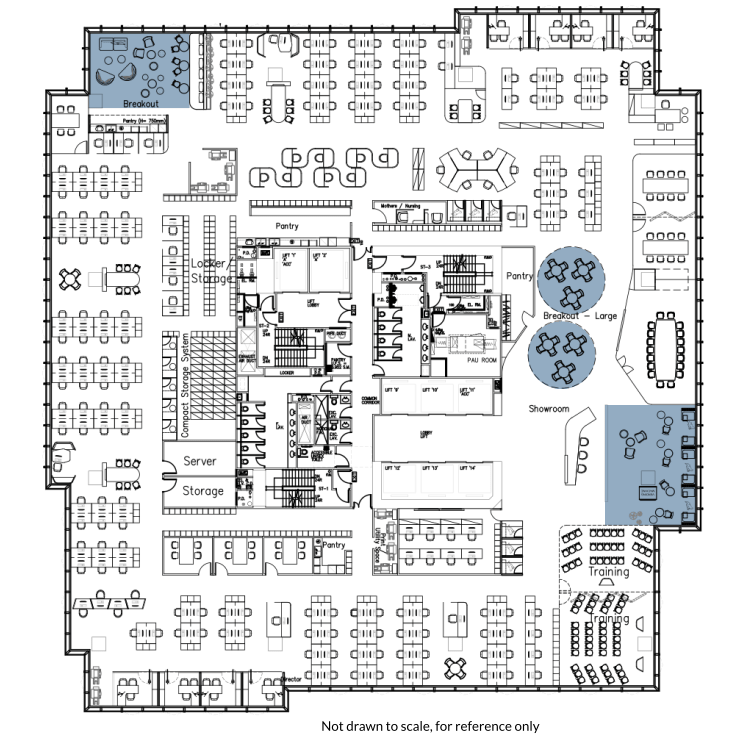

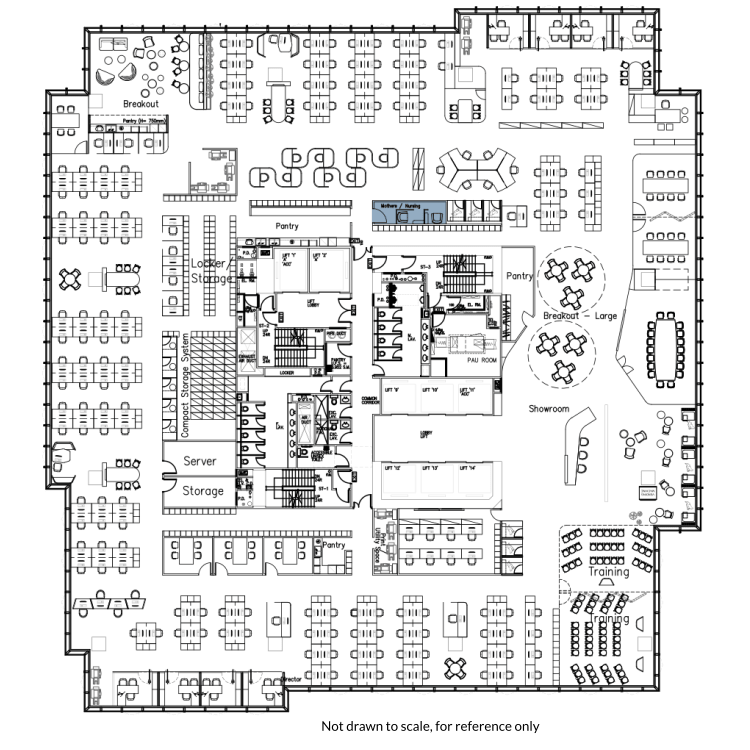

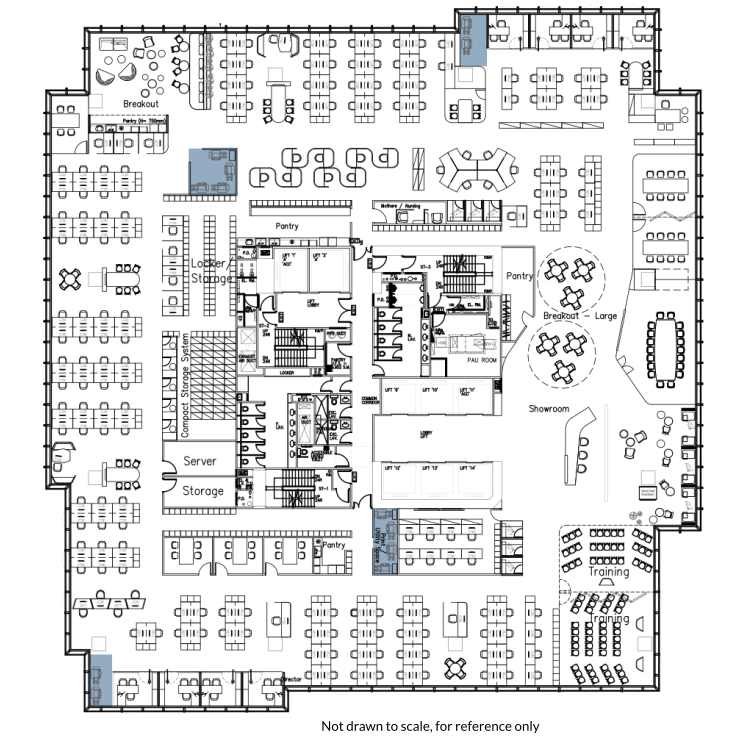

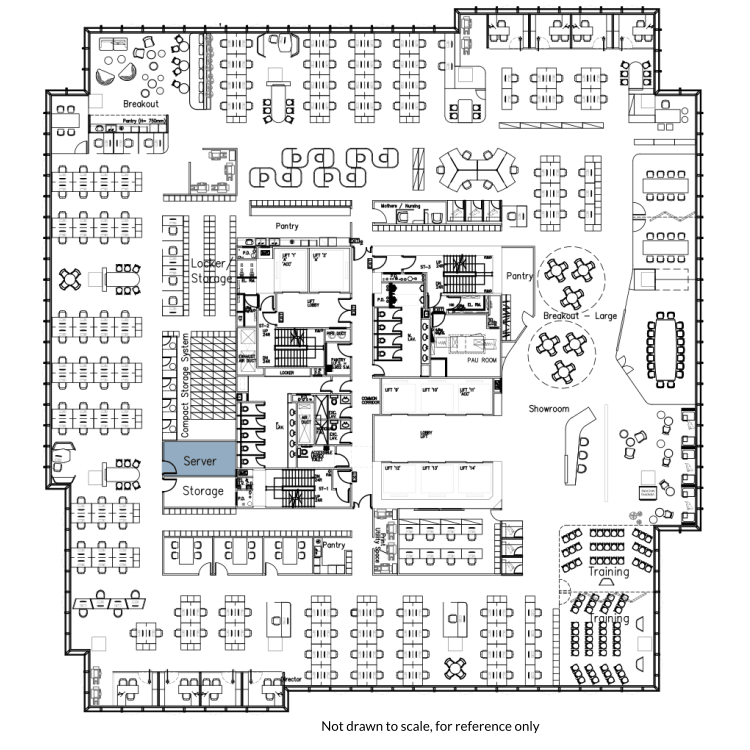

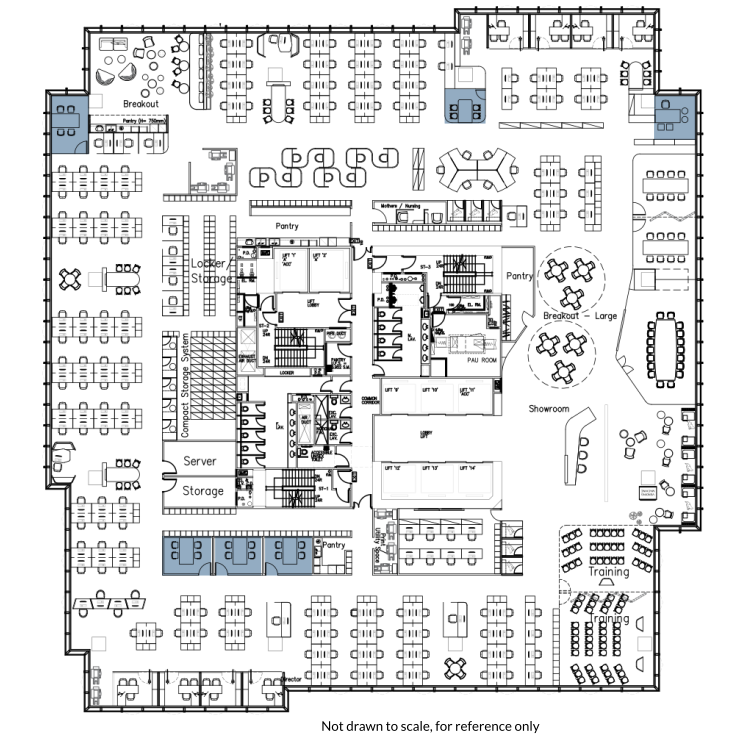

Office Test-fit
